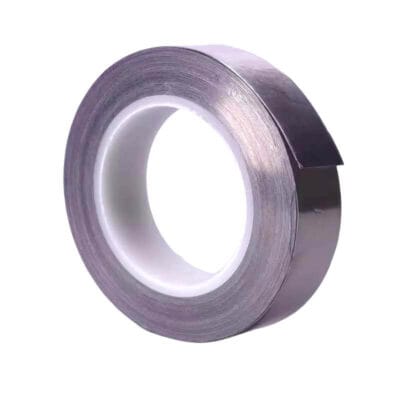

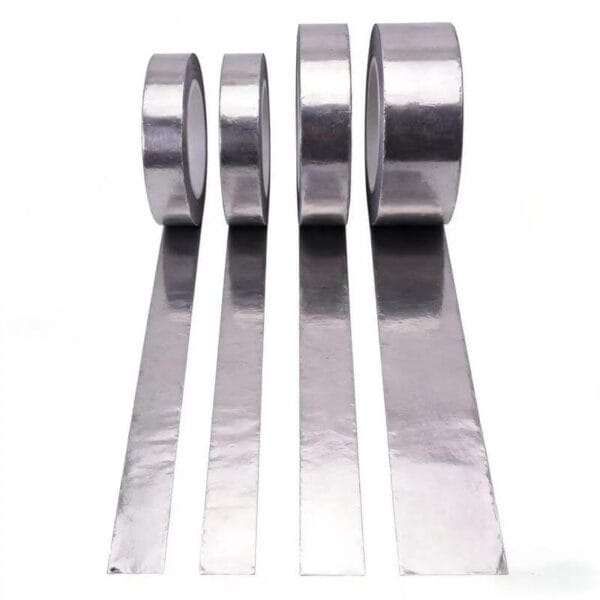

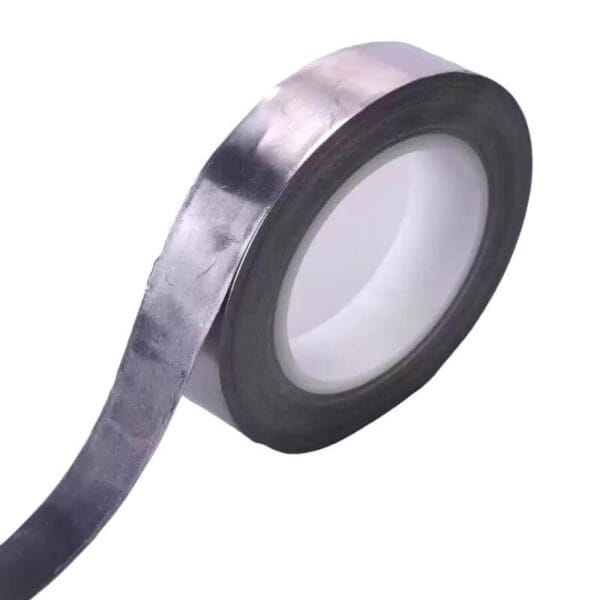

High Temperature Electrically and Thermally conductive Lead Foil Tape-3M420 3M421 Alternative Tape for Electroplating Radiation Barrier

Lead Foil Tape 3M420 alternative is a specialized industrial solution known for its unique combination of conformability, conductivity, and radiation shielding. Because it features a rubber adhesive paired with a malleable lead backing, it excels in environments where standard tapes would fail.

Below are the primary applications across various industries:

1. Electroplating and Anodizing

This is perhaps the most common use for 3M 420. The tape acts as a “maskant” to protect specific areas of a part from being plated.

• Why it works: Lead is electrically conductive, so it doesn’t create “beading” at the edges of the masked area. It helps maintain a uniform electrical field, ensuring the plating thickness remains consistent.

• Key Benefit: It prevents “over-plating” or “thieving” of the metal onto unwanted sections.

2. Radiation Shielding and X-Ray Masking

Lead is the gold standard for blocking radiation. 3M 420 is used in medical and industrial radiography.

• X-Ray Plates: It is used to mask sections of X-ray plates to prevent film fogging or to create sharp boundaries in imaging.

• Protection: It can be applied to equipment or containers to provide a localized barrier against X-rays and gamma radiation.

3. Moisture and Vapor Barrier

Because lead is naturally impermeable, this tape serves as an excellent sealant against moisture.

• Sealing: It is used to seal holes or seams in specialized containers where moisture ingress must be zero.

• Durability: It performs well in outdoor or high-humidity environments, resisting degradation better than many plastic-backed tapes.

4. Weighting and Balancing (Vibration Dampening)

The high density of lead makes this tape an easy way to add precise amounts of weight to a component.

• Golf Clubs & Tennis Rackets: Athletes use it to adjust the “swing weight” and balance of their equipment.

• Aerospace/Industrial: It is used for fine-tuning the balance of rotating parts or dampening vibrations in sensitive electronic housings.

5. Chemical Milling and Stripping

Lead foil tape 3M 420 alternative is highly resistant to many harsh chemicals, including those used in paint stripping and acid etching.

• Masking: It protects surfaces from caustic chemicals during the milling process, ensuring only the exposed areas are etched away.
