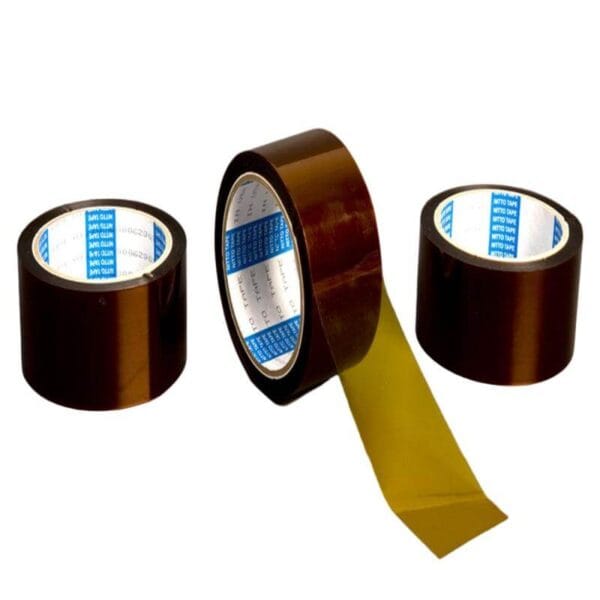

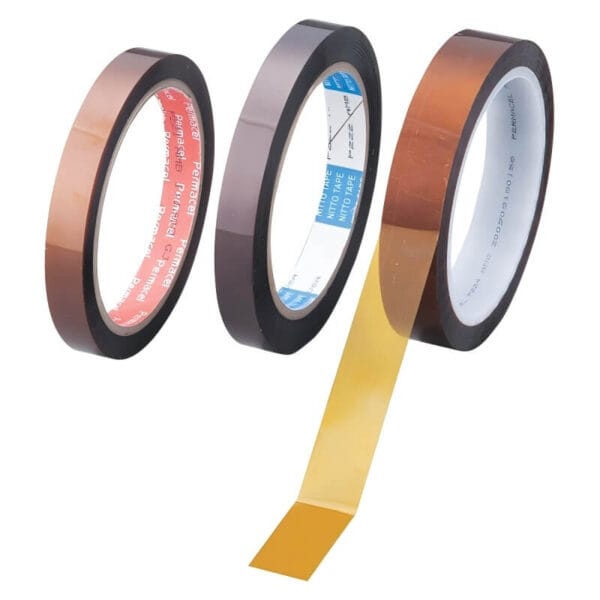

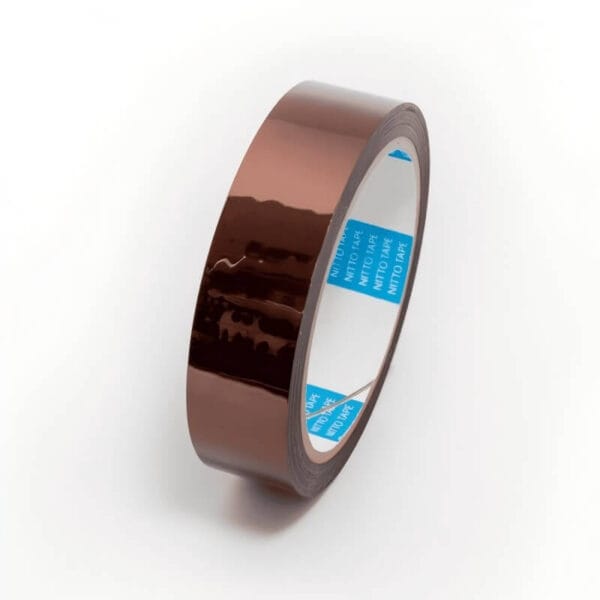

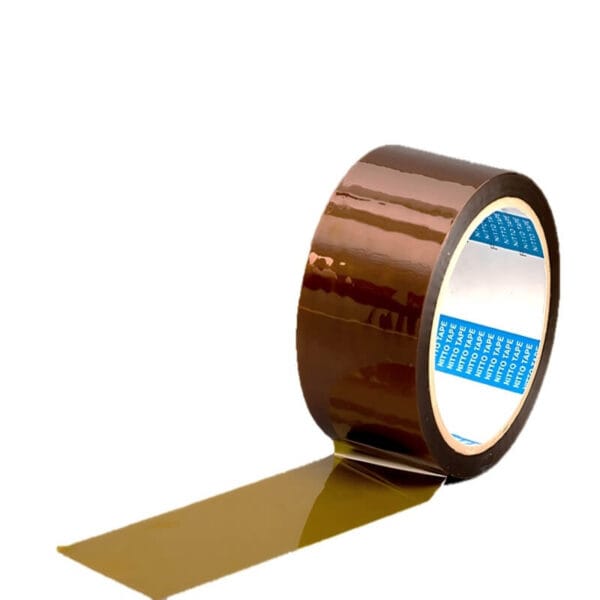

Nitto P-221 Kapton Polyimide Film Electrical Insulation Tape

The ultimate in electrical insulation tapes – both thin and highly conformable. A high-performance tabbing tape also used within lithium ion battery cells, wave and solder reflow, masking against chemicals, heat and harsh conditions making it ideal for use in various markets from consumer electronics to Aerospace.

The ultimate in electrical insulation tape, our P-221 AMB. Thin and highly conformable, with outstanding puncture, tear and abrasion resistance at elevated temperatures. An ideal high performance tape for tabbing and holding Lithium Ion Battery Cells. Also used for wave solder and solder reflow in electrical markets.

Features

Offers superior electrical insulation.
Offers superior dimension stability.
Offers superior heat resistance (Normal service temperature is 320°F/160°C).
Narrow width processing is available.
Available in long lengths.

Structure

Applications

Suited for continuous cold and high temperature environments.
Used as ground, barrier and phase insulation in small, high performance toroidal coils, high frequency
motors, end turn bundling and connection insulation in small motors.
Recommended for cross over insulation and outer protective wraps on small bobbin and large rotating
machine wound coils to bundle conductors and reinforce insulation.
Applied on printed circuit boards during wave solder masking.

Properties

nitto P-221 properties

Inquiry Now:

Weight	0.04 kg
Dimensions	13 × 13 × 1 cm
